Air/Water Rubber Hoses with Fiber reinforced
Other name: Rubber water hoses, Water delivery hose, Rubber water tubing, Reinforced water hoses, Air delivery hose, Air rubber hose, Flexible Reinforced Air Hoses, Reinforced air tubing, High pressure rubber air pipe line.
Tube: Black, smooth, synthetic rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Black or red, smooth (wrapped finish) synthetic rubber, weather and abrasion resistant.
Application: For a variety of general purposes in industries, construction sites and mines.
Working Temperature: -35℃ to 80℃.

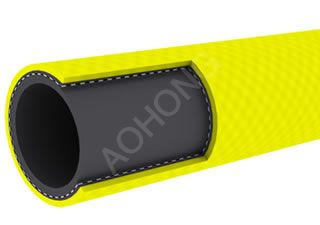

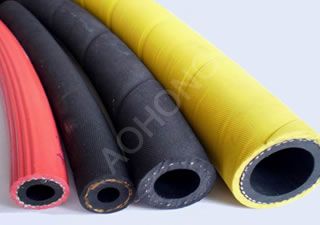

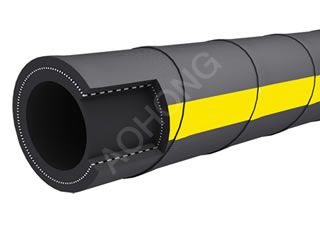

| | |  |  | | Structure picture | Structure picture |  |  | | Structure picture | Real product picture |
Specification:| I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. | | MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL | | 5 | 3/16" | 12 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.13 | 100±1% | | 6 | 1/4" | 13 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.15 | 100±1% | | 8 | 5/16" | 15 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.23 | 100±1% | | 10 | 3/8" | 17 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.26 | 100±1% | | 13 | 1/2" | 22 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.36 | 100±1% | | 16 | 5/8" | 25 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.53 | 100±1% | | 19 | 3/4" | 29 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.64 | 100±1% | | 25 | 1" | 36 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.85 | 100±1% | | 32 | 1.1/4" | 43 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 1.20 | 50±1% | | 38 | 1.1/2" | 50 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 1.39 | 50±1% | | 51 | 2" | 65 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 1.80 | 50±1% |
|
|
