Fuel Oil Rubber Hose
Other name: Rubber fuel oil hoses, Flexible Reinforced oil Hoses, reinforced fuel tubing. fuel oil pipe line, Oil delivery rubber hose, oil resistance rubber hose, oil resistance rubber hose with Fiber reinforced
Tube: Black, smooth, nitrile rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Black, smooth (wrapped finish) synthetic rubber, abrasion, weather and oil resistant.
Application: Suitably for transportation of gasoline, kerosene, diesel, engine oil, lubricating oil or other mineral oil in industrial and mining machinery, oil depots, terminals at normal, also can be used on hydraulic systems such as oil return hose.

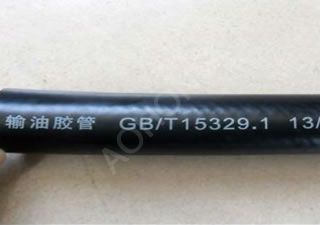

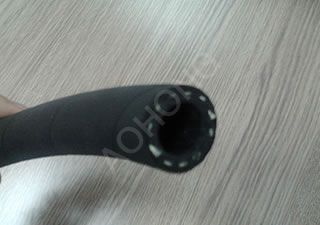

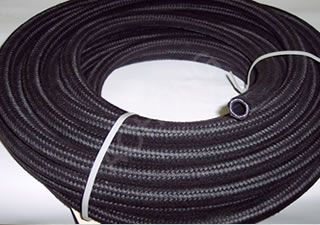

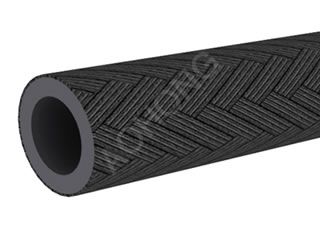

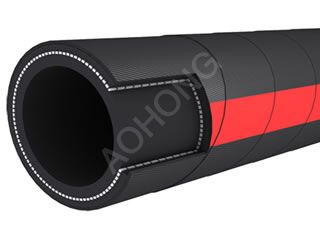

Working Temperature: -40℃ to 100℃. | | |  |  | | Structure picture | Structure picture |  |  | | Structure picture | Real product picture |  |  | | Real product picture | Real product picture |
Specification:| I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. | | MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL | | 5 | 3/16" | 12 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.13 | 100±1% | | 6 | 1/4" | 13 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.15 | 100±1% | | 8 | 5/16" | 15 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.23 | 100±1% | | 10 | 3/8" | 17 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.26 | 100±1% | | 13 | 1/2" | 22 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.36 | 100±1% | | 16 | 5/8" | 25 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.53 | 100±1% | | 19 | 3/4" | 29 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.64 | 100±1% | | 25 | 1" | 36 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 0.85 | 100±1% | | 32 | 1.1/4" | 43 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 1.20 | 50±1% | | 38 | 1.1/2" | 50 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 1.39 | 50±1% | | 51 | 2" | 65 | 0.3~1.0 | 45~145 | 0.9~3.0 | 130~430 | 1.80 | 50±1% |
|
