LPG Rubber Hose

Other name: Rubber gas hoses, Flexible LPG Hoses, LPG gas tubing, LPG rubber hose pipe line.
Tube: Black, smooth, nitrile rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Orange, smooth (wrapped finish) synthetic rubber, abrasion, weather and oil mist resistant.
Application: For conveyance of liquid gas, home burner system, grill, oil-resistant.
Working Temperature: -40℃to~+90℃.


LPG Rubber HoseLPG Rubber Hose

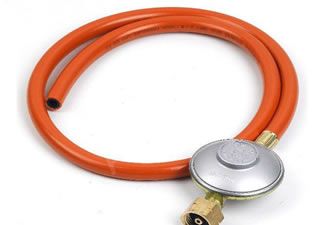

Structure pictureReal product picture

Specification:

I.D.

O.D.

W.P.

B.P.

WEIGHT

LENGTH MAX.

MM

INCH

MM

MPA

PSI

MPA

PSI

KG/M

M/ROLL

5

3/16"

12

1.0~2.0

145~290

3.0~6.0

430~870

0.13

100±1%

6

1/4"

13

1.0~2.0

145~290

3.0~6.0

430~870

0.15

100±1%

8

5/16"

15

1.0~2.0

145~290

3.0~6.0

430~870

0.23

100±1%

10

3/8"

17

1.0~2.0

145~290

3.0~6.0

430~870

0.26

100±1%

13

1/2"

22

1.0~2.0

145~290

3.0~6.0

430~870

0.36

100±1%




*

*

*

*
