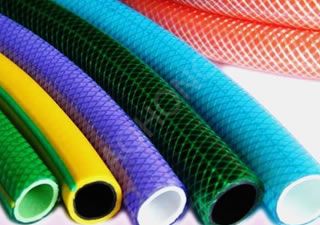

PVC Garden Hose
Other name: PVC Garden hoses, Flexible Reinforced PVC Garden Hoses, reinforced PVC tubing, Reinforced water hoses, PVC braided reinforced hoses, wire reinforced PVC tubing.
Application: Excellent Chemical and physical property, very ideally for conveying water, oil and gas, Widely used in construction, agricultural, fishery, project, household and industrial service.
Inner Layer: high quality PVC material
Reinforcement: Polyester fiber
Outer Layer: high quality PVC material, adding anti-UV material the hose can be used for long life span without color changed.
Working Temperature: -10°C To +65°C (14°F To +150°F) | | |  |  | | Structure picture | Real product picture | | | |
Specification:| I.D | THICKNESS | LENGTH | W.P. MPA | B.P. MPA | VOLUMN | WEIGHT | | inch | mm | mm | m | At 23℃ | m3 | KGS | | 3/8" | 10 | 2 | 100 | 0.8 | 2.4 | 0.0159 | 10.2 | | 1/2" | 12 | 2 | 100 | 0.6 | 1.8 | 0.045 | 11.5 | | 12 | 2.5 | 100 | 0.7 | 2.1 | 0.048 | 14.8 | | 13 | 2 | 100 | 0.6 | 1.8 | 0.048 | 12.5 | | 13 | 2.5 | 100 | 0.7 | 2.1 | 0.052 | 15.8 | | 5/8" | 16 | 2 | 50 | 0.6 | 1.8 | 0.035 | 7.5 | | 16 | 2.5 | 50 | 0.5 | 1.5 | 0.038 | 9.5 | | 3/4" | 19 | 2.5 | 50 | 0.5 | 1.5 | 0.045 | 11 | | 19 | 3 | 50 | 0.6 | 1.8 | 0.048 | 13.5 | | 1" | 25 | 2.5 | 50 | 0.4 | 1.2 | 0.093 | 14 | | 25 | 3 | 50 | 0.4 | 1.2 | 0.093 | 17.1 |
|
