PVC Spiral Steel Wire Reinforced Hose

Other name: PVC steel suction hoses, Steel Spiral Reinforced PVC Suction Hoses, Water suction hoses with steel wire, PVC Suction and discharge hoses, Steel reinforced PVC hoses.
Wall: high quality special PVC material
Reinforcement: Steel spiral
Application: very ideally for conveying water, oil and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.
Working Temperature: -10°C To +65°C (14°F To +150°F)

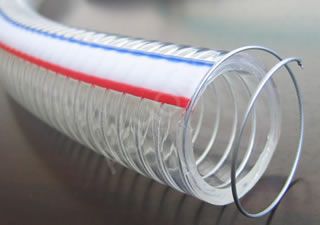

Structure picture	Real product picture

Specification:

I.D.		O.D.	Length	W.P.	B.P.	Weight	packing size		Volume
inch	mm	mm	m/roll	MPa	MPa	kg/m	dia.	High	m3
3/4“	20	24.6±0.2	50	0.5	1.5	0.25	650	180	0.076
3/4“	20	25.4±0.2	50	0.5	1.5	0.3	650	180	0.076
1”	25	29±0.2	50	0.5	1.5	0.25	650	200	0.085
	25	29.4±0.2	50	0.5	1.5	0.3	650	200	0.085
	25	31.6±0.2	50	0.5	1.5	0.4	650	210	0.089
	25	31.8±0.2	50	0.5	1.5	0.5	650	210	0.089
1.1/4“	32	36.6 ±0.2	50	0.5	1.5	0.4	750	220	0.129
	32	37±0.2	50	0.5	1.5	0.5	750	230	0.129
	32	40.2±0.2	50	0.4	1.1	0.65	750	260	0.166
1.1/2”	38	42±0.2	50	0.4	1.1	0.4	850	310	0.224
	38	42.8±0.2	50	0.4	1.1	0.5	850	310	0.224
	38	44.6±0.2	50	0.4	1.1	0.7	850	310	0.224
	38	46±0.2	50	0.4	1.1	0.9	850	320	0.231
1.3/4“	45	52.8±0.2	50	0.4	1.1	0.8	900	300	0.243
1.3/4“	45	53±0.2	50	0.4	1.1	1	950	300	0.271
1.7/8”	48	57.8±0.2	50	0.4	1.1	1.1	950	320	0.289
2“	50	56±0.2	50	0.4	1.1	0.7	980	320	0.307
	50	56.4±0.2	50	0.4	1.1	0.8	980	320	0.307
	50	56.8±0.2	50	0.4	1.1	0.9	980	320	0.307
	50	57±0.2	50	0.4	1.1	1	980	320	0.307
	50	58±0.2	50	0.4	1.1	1.1	1000	310	0.31
	50	59.6±0.2	50	0.4	1.1	1.2	1000	310	0.31
2.1/2”	64	70±0.2	30	0.4	1.1	1.2	1050	300	0.331
	64	72.4±0.2	30	0.4	1.1	1.4	1050	300	0.331
	64	73.5±0.2	30	0.4	1.1	1.6	1050	300	0.331
	64	74±0.2	30	0.4	1.1	1.8	1050	300	0.331
3“	75	81.8±0.2	30	0.3	0.8	1.4	1050	340	0.375
	75	82.4±0.2	30	0.3	0.8	1.6	1050	340	0.375
	75	83.6±0.2	30	0.3	0.8	1.8	1050	340	0.375
	75	85±0.2	30	0.3	0.8	2	1130	330	0.421
	75	85.8±0.2	30	0.3	0.8	2.2	1150	350	0.463
3.1/2”	89	100±0.2	30	0.3	0.8	2.5	1250	350	0.547
4“	102	110±0.2	30	0.3	0.8	2.5	1250	450	0.703
	102	110.8±0.2	30	0.3	0.8	2.7	1180	430	0.599
	102	112±0.2	30	0.3	0.8	3	1180	430	0.599
	102	114.2±0.2	30	0.3	0.8	3.5	1180	440	0.613
	102	114.6±0.2	30	0.3	0.8	4	1180	450	0.627
	102	121.6±0.2	30	0.3	0.8	5	1180	460	0.641
	108	118±0.2	30	0.3	0.8	3.2	1180	470	0.615
	108	120±0.2	30	0.3	0.8	3.5	1180	480	0.616
5"	127	141±0.2	20	0.2	0.6	5	1440	430	0.892
6"	152	166±0.2	20	0.2	0.6	6.5	1700	430	1.243
